2520 Airbag
Price range: $210.00 through $330.00
| Bellows | Double |
|---|

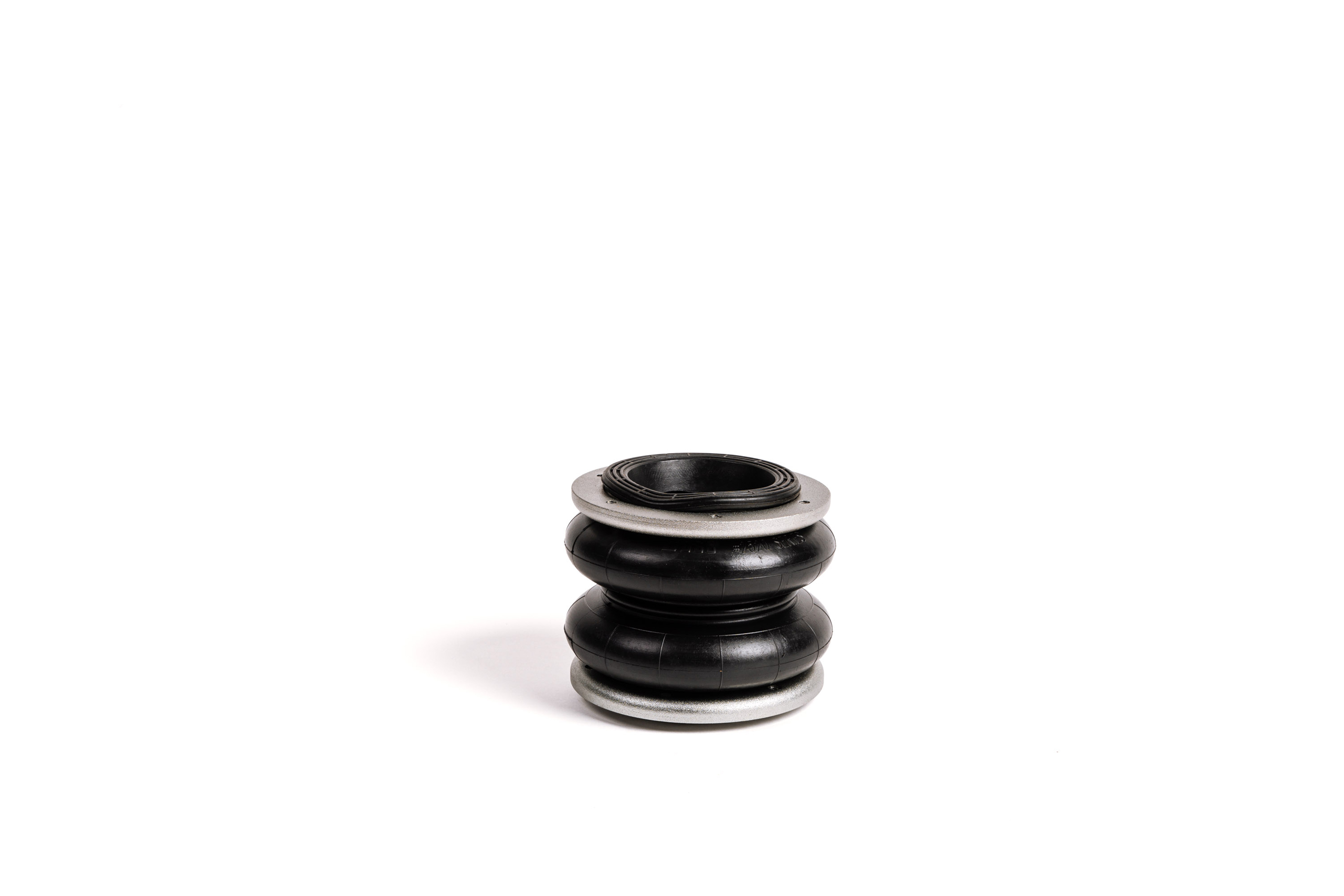

The BOSS double bellow 2520 Airbag is similar to the 2500 bag but with less height
Developed for installations were vertical space is limited
Suitable to match with all BOSS bracketry
A good option for projects and custom builds
Note: the above ‘BAG 2500/2400 End Plate’ diagram relates to our Bag Completes only
Description
- BAG CAPACITY: 2500lb (or 1136kgs) @ 100psi
- FREE HEIGHT: 115mm (sitting on the bench)
- MAX HEIGHT: 175mm
- FULLY COMPRESSED: 65mm
- MAX DIAMETER: 140mm (fully compressed)
- WORKING PRESSURE: 0-160psi
