2503 Airbag
Price range: $240.00 through $350.00
| Bellows | Triple |
|---|

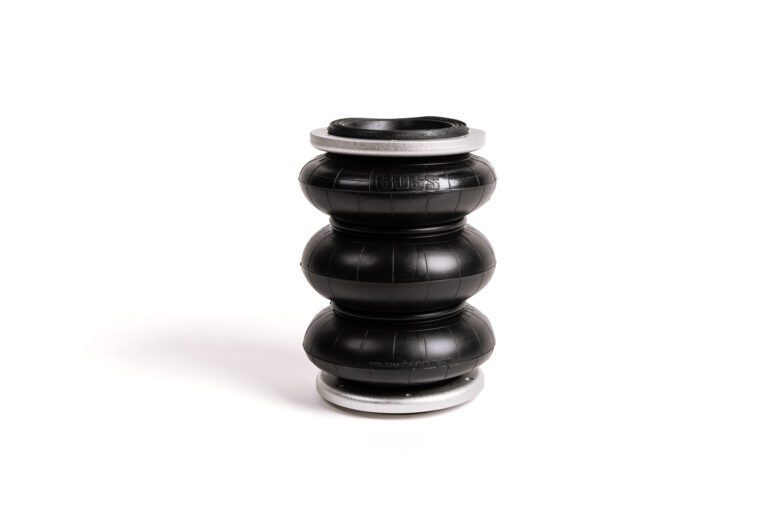

The BOSS triple bellow 2503 Airbag is widely used throughout our Load Assist range
Most commonly used in vehicles that have been lifted more than 2”
Thousands installed in vehicles worldwide and like the double bellow bag it has outstanding strength, comfort and durability

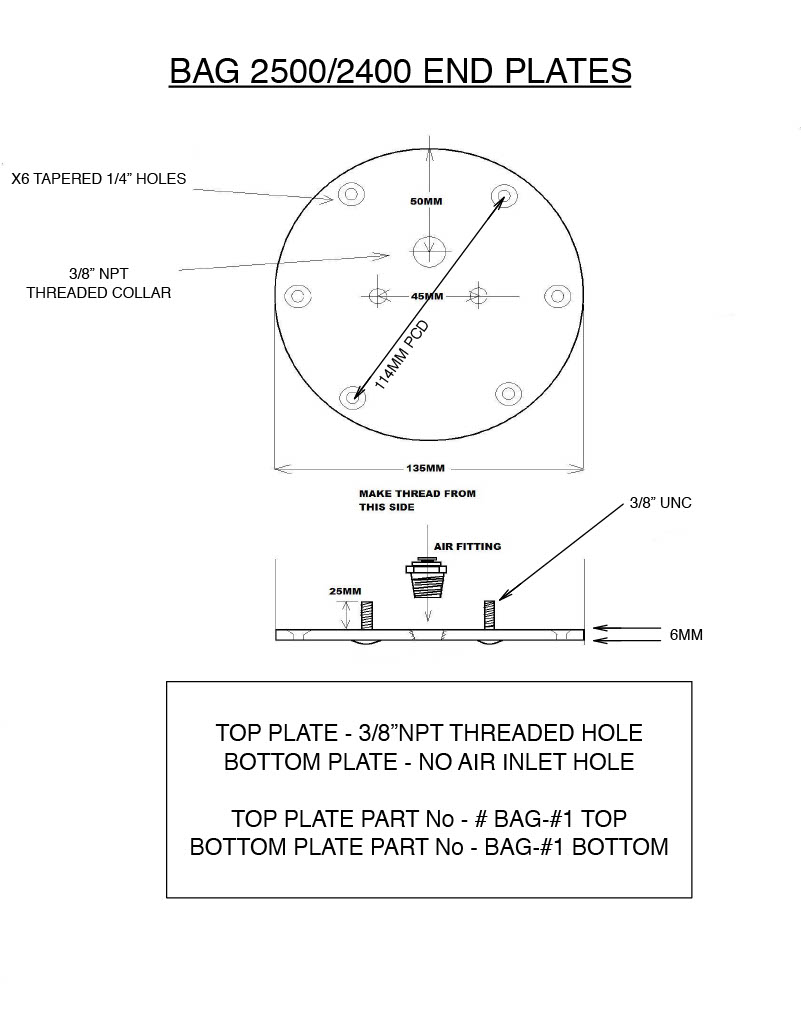

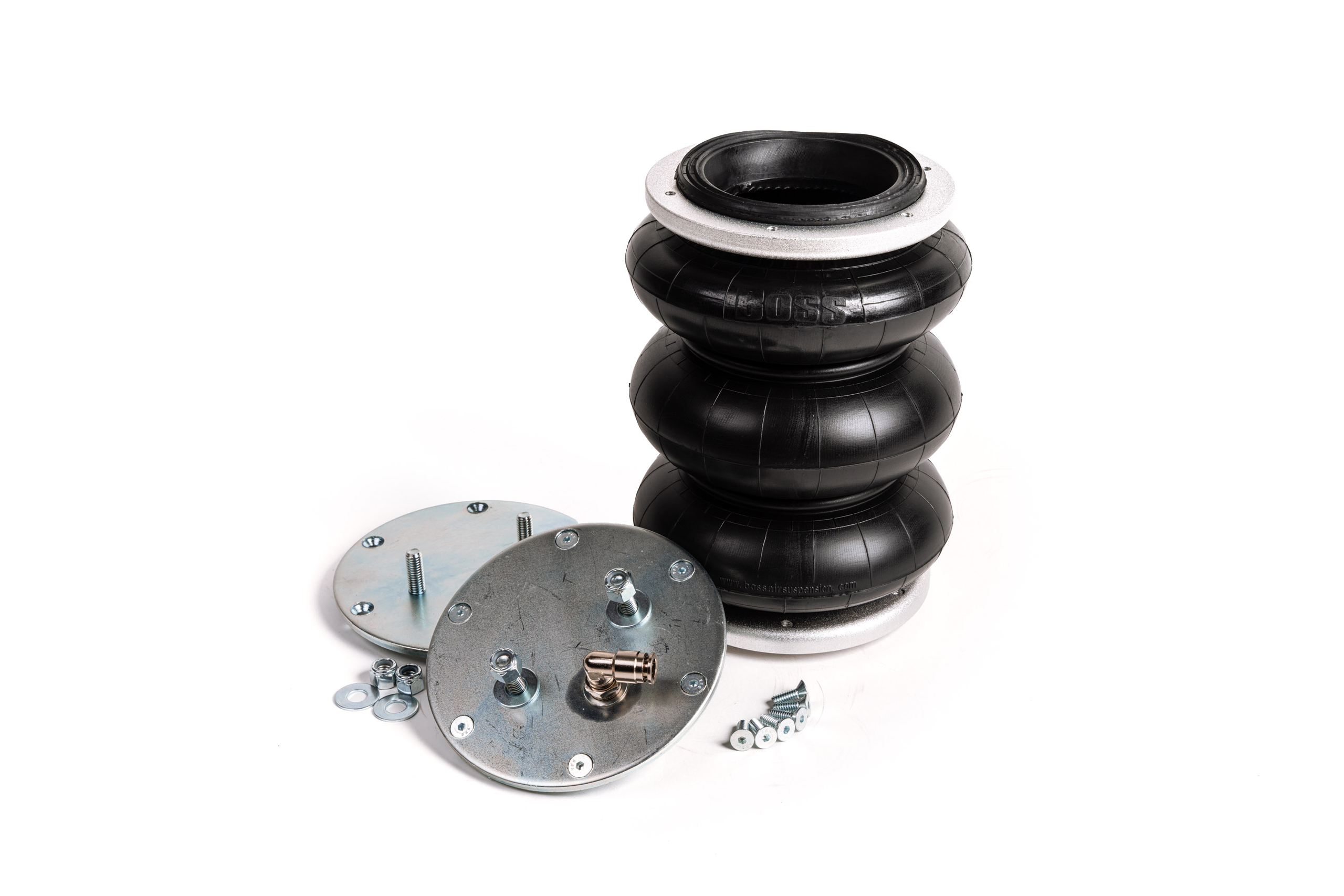

Note: the above ‘BAG 2500/2400 End Plate’ diagram relates to our Bag Completes only
Description
- BAG CAPACITY: 2500lb (or 1136kgs) @ 100psi
- FREE HEIGHT: 220mm (sitting on the bench)
- MAX HEIGHT: 355mm
- FULLY COMPRESSED: 85mm
- MAX DIAMETER: 155mm (fully compressed)
- WORKING PRESSURE: 0-160psi
